Forged X120Mn12 Bushing For Port Grab

We are here to help:Easy ways to get the answers you need.

Structure Describe Available Products Typical Application Inquiry

Product Structure

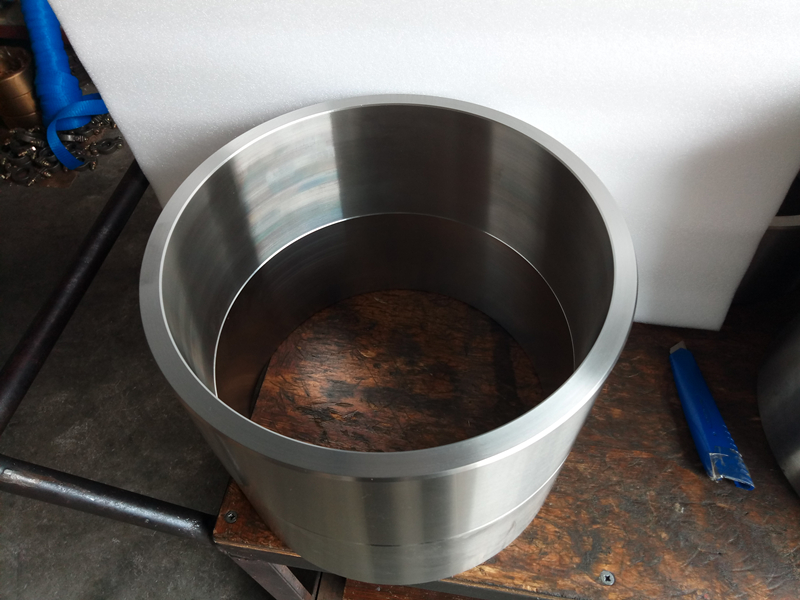

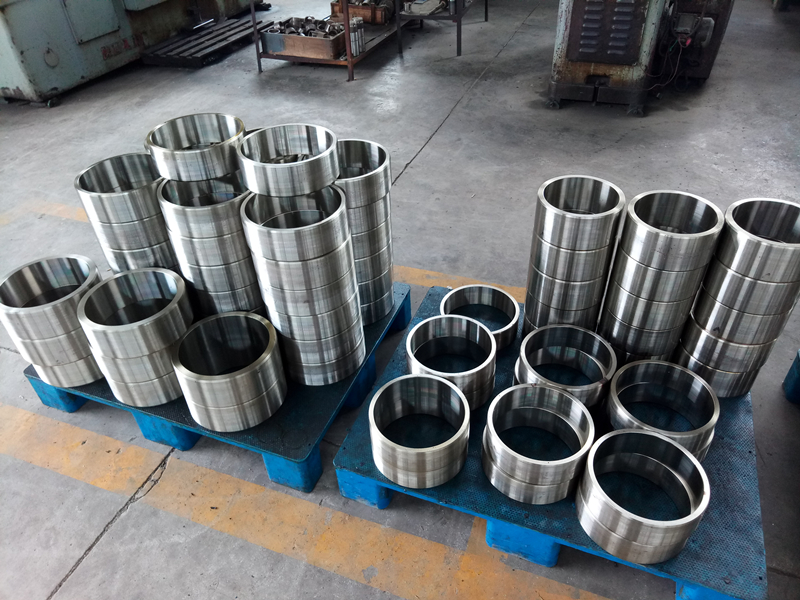

X120Mn12 straight bushings.We can provide special size and production according to your requirements and drawings.Our forged bushing are better than casting parts with high performance and 3 times of service life than casting.

Product Describe

Materials:X120Mn12,Mn13,Mn18Cr2

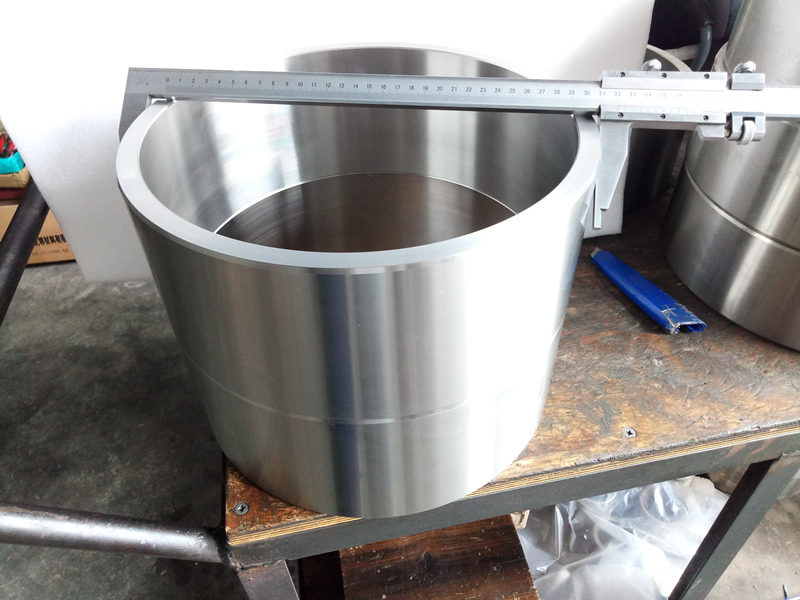

Specifications: OD 320mm×ID 290mm×L 150mm
Feature:The product is featured by high strength, great toughness, an elongation up to 35 to 60%, the ratio of yield strength to tensile strength being less than 0.4. Thus parts are less likely to have fractures under the working condition and the safety of parts may be effectively protected.

Available products

Mechanical performance

Chemical Compsitions:

Product	C	Mn	P	S	Si	Cr	Mo	V
Forged-X120Mn12	0.95-1.2	11-14	≤0.06	≤0.04	0.3-0.9
Forged-Mn18	1.05-1.35	16-19	≤0.06	≤0.04	≤0.8

Mechanical Performance:

Product	Tenslie Strength	Yield Strength	Elongation	Impact Toughness
Forged-X120Mn12	≥880MPa	≥350MPa	≥35%	≥275J/cm2
Forged-Mn18	≥1050MPa	≥650MPa	≥25%	≥175J/cm2

Typical Application
